13  Data Reshaping

Data Grouping and Aggregation ended with a grouped result indexed by continent and year, and a promise: turning it into a table with one column per year is reshaping. The same information can be laid out with many rows and few columns, or few rows and many columns, and different tasks need different layouts. A plot that colours lines by group wants one layout; a comparison of two years side by side wants the other.

This chapter is about moving data between those layouts without changing a single value. It covers turning a long table wide, turning a wide table long, and the checks that confirm nothing was lost, duplicated, or quietly averaged along the way.

By the end of this chapter you should be able to:

Complete the practice activity after the worked examples.

13.1 Set Up Your Chapter Files

Download the Data Reshaping practice kit. Extract stat303-data-reshaping inside the chapters folder of your stat303-1 course folder, open stat303-1 in VS Code, and select the course environment. The terminal opens in stat303-1, so move it into the kit with cd chapters and then cd stat303-data-reshaping before you render the activity.

stat303-1/
├── .venv/
├── assignments/
└── chapters/
    └── stat303-data-reshaping/
        ├── data_reshaping_examples.ipynb
        ├── activity13.ipynb
        ├── README.md
        └── data/
            └── gdp_lifeExpectancy.csv

Run data_reshaping_examples.ipynb for the lesson and complete activity13.ipynb for your own activity report, with stat303-data-reshaping as the notebook working folder. The data is read with the relative path "data/gdp_lifeExpectancy.csv", so the notebooks find it only when that folder is the working folder.

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns

Environment check: This chapter uses NumPy, pandas, matplotlib, and seaborn, all of which are already in the course environment. If an import fails, check the selected notebook kernel first: it must be the course environment, stat303-1/.venv, as in Project Environments, Packages, and File Paths.

13.2 What reshaping is

Reshaping changes the structure of a table without changing the information in it. Think of rearranging the furniture in a room: every piece is still there, but the layout suits a different purpose. The same values can be arranged in two basic layouts:

  • Long format stacks the values into few columns and many rows. Each row is one observation: one country in one year, with its life expectancy.
  • Wide format spreads the values across many columns and few rows. Each row is one unit, such as a country, with one column per year.

A small example with three countries and three years shows both. The data starts long:

toy_long = pd.DataFrame({
    "country": ["USA", "USA", "USA", "Canada", "Canada", "Canada", "Mexico", "Mexico", "Mexico"],
    "year": [2000, 2005, 2010] * 3,
    "lifeExp": [76.8, 77.5, 78.5, 79.2, 80.1, 81.0, 74.1, 75.2, 76.5],
})
toy_long
country year lifeExp
0 USA 2000 76.8
1 USA 2005 77.5
2 USA 2010 78.5
3 Canada 2000 79.2
4 Canada 2005 80.1
5 Canada 2010 81.0
6 Mexico 2000 74.1
7 Mexico 2005 75.2
8 Mexico 2010 76.5

Nine rows, three columns. pivot(), explained fully below, turns the year values into column headers:

toy_wide = toy_long.pivot(index="country", columns="year", values="lifeExp")
toy_wide
year 2000 2005 2010
country
Canada 79.2 80.1 81.0
Mexico 74.1 75.2 76.5
USA 76.8 77.5 78.5

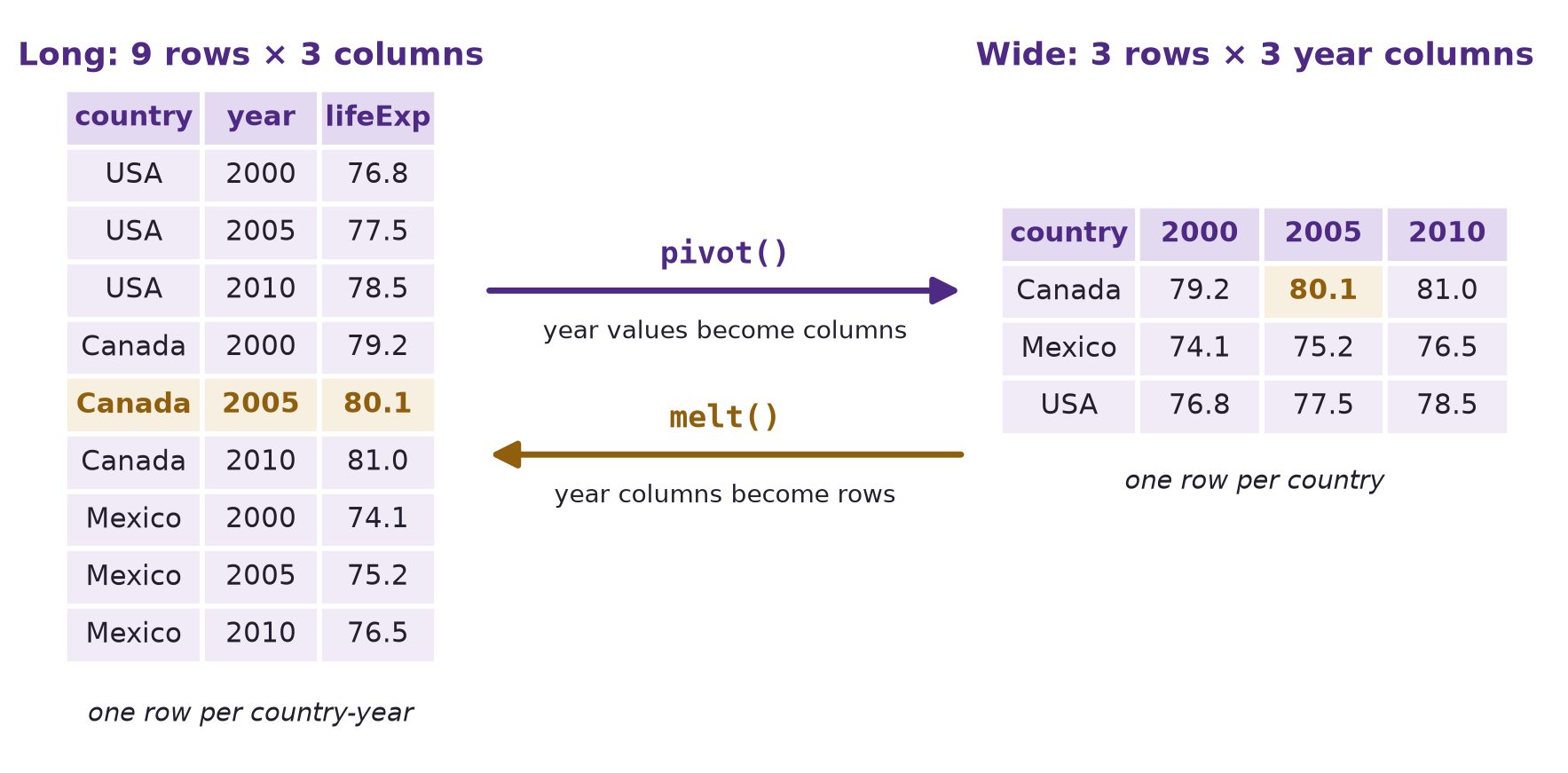

Three rows, three year columns, and the same nine values. The diagram follows one of them, Canada in 2005, through the reshape in each direction:

The same nine values in long and wide format. pivot() turns the year values into column headers; melt() turns the year columns back into rows. Canada’s 2005 value, 80.1, is highlighted in both.
Format Rows Columns Each row is Suits
Long 9 3 One country in one year Plotting by group, groupby(), statistical models
Wide 3 3 One country Comparing years side by side, reading as a table
NoteTidy data

You will often see long format described as tidy data: each variable is a column, each observation is a row, and each value is a cell. In the long table, country, year, and lifeExp are each one column, and each row is one observation. In the wide table, the single variable “year” is spread across three column headers. Tidy data is what groupby(), seaborn, and most statistical tools expect, which is why data is so often melted before it is analysed.

Why reshaping matters.

  • Different tools need different layouts. Seaborn’s hue= and col=, from the visualization chapters, expect long data: one column holding the group. A comparison of 1957 with 2007 is one subtraction in wide data, with each year its own column.
  • Some calculations are easy in one layout and awkward in the other. Change over time per country is a column difference when wide; a mean per year is a groupby() when long.
  • Combining datasets needs matching layouts. Two tables can only be joined row by row once each row means the same thing in both, the subject of the next chapter.
Direction From a grouped result From a table
Long → wide unstack() pivot(), or pivot_table() to summarize
Wide → long stack() melt()

13.3 The data

The rest of the chapter uses the Gapminder data from Data Grouping and Aggregation: 142 countries every five years from 1952 to 2007. It arrives in long format, one row per country-year:

gdp = pd.read_csv("data/gdp_lifeExpectancy.csv")
print(gdp.shape)
gdp.head()
(1704, 6)
country continent year lifeExp pop gdpPercap
0 Afghanistan Asia 1952 28.801 8425333 779.445314
1 Afghanistan Asia 1957 30.332 9240934 820.853030
2 Afghanistan Asia 1962 31.997 10267083 853.100710
3 Afghanistan Asia 1967 34.020 11537966 836.197138
4 Afghanistan Asia 1972 36.088 13079460 739.981106

13.4 Long to wide

13.4.1 Rearranging values: pivot()

pivot() turns the values of one column into column headers. In the Gapminder data each country has exactly one life expectancy per year, so a country-by-year table has one value for each cell, and pivot() only has to move each value to its new place. index= takes a list, so each row keeps its continent as well as its country:

country_wide = gdp.pivot(index=["continent", "country"], columns="year", values="lifeExp")
print(country_wide.shape)
country_wide.iloc[:3, :6].round(1)
(142, 12)
year 1952 1957 1962 1967 1972 1977
continent country
Africa Algeria 43.1 45.7 48.3 51.4 54.5 58.0
Angola 30.0 32.0 34.0 36.0 37.9 39.5
Benin 38.2 40.4 42.6 44.9 47.0 49.2

142 rows, one per country, and 12 year columns: 142 × 12 = 1,704 cells, one for each row of gdp. The three arguments name the parts of the result:

Argument Becomes Here
index= The row labels One row per country, labelled with its continent too
columns= The column headers One column per year
values= What fills the cells lifeExp

Nothing is calculated: every number in the table is a number from gdp, moved to a new position. That is what reshaping means.

13.4.2 Why wide: two years side by side

With one row per country and one column per year, comparing any two years is easy. A scatter plot of 1957 against 2007 shows every country’s 50-year change at once. reset_index() turns the two index levels back into columns for seaborn:

plot_data = country_wide.reset_index()

fig, ax = plt.subplots(figsize=(7.5, 6), layout="constrained")
sns.scatterplot(data=plot_data, x=1957, y=2007, hue="continent", alpha=0.75, ax=ax)
ax.axline((40, 40), slope=1, color="gray", linestyle="--", label="no change")
ax.set(xlabel="Life expectancy in 1957 (years)", ylabel="Life expectancy in 2007 (years)",
       title="Almost every country gained; four did not")
ax.legend(loc="lower right")
plt.show()

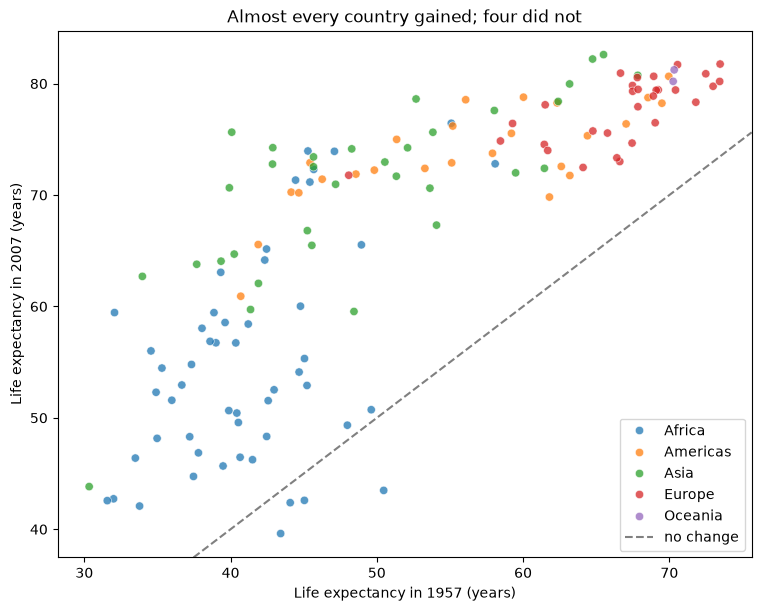

Points above the dashed line gained life expectancy over 50 years; points below it lost. Selecting the countries below the line is one comparison of two columns:

declined = country_wide[country_wide[2007] < country_wide[1957]]
declined[[1957, 2007]].round(1)
year 1957 2007
continent country
Africa Lesotho 45.0 42.6
Swaziland 43.4 39.6
Zambia 44.1 42.4
Zimbabwe 50.5 43.5

Four countries, all in southern Africa — Lesotho, Swaziland, Zambia, and Zimbabwe — had lower life expectancy in 2007 than in 1957. This is the region the HIV/AIDS epidemic of the 1990s and 2000s hit hardest, and it is why Africa’s average stalled in the last chapter’s trend plot. In long format, finding these four would take a filter, a groupby(), and a comparison across rows; in wide format it is one line.

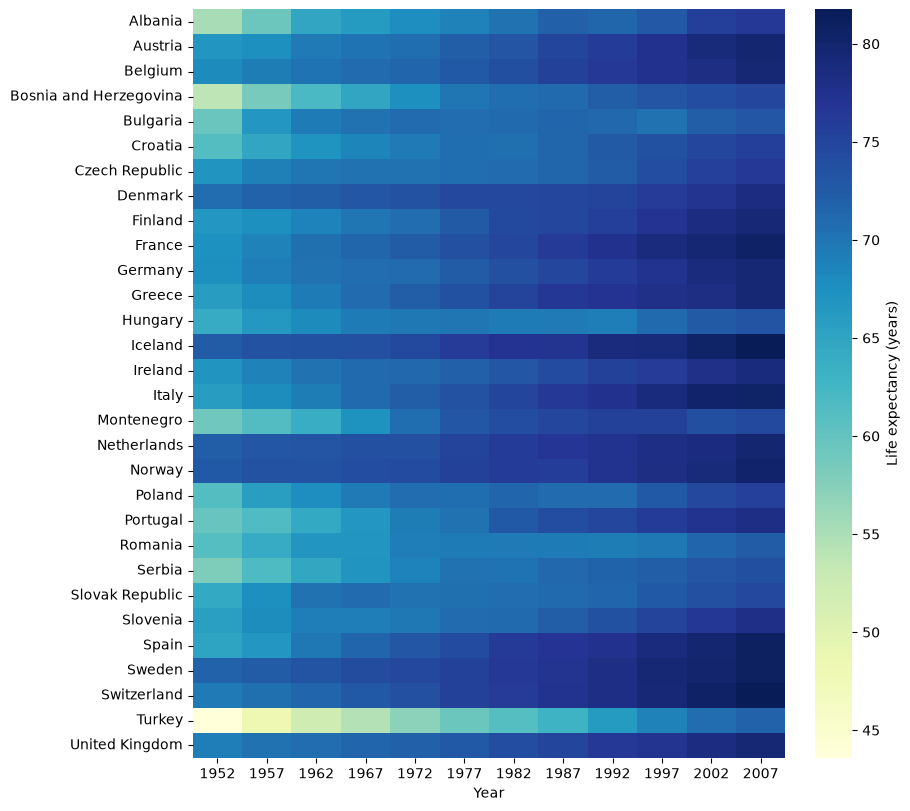

A wide table is also exactly what a heatmap draws, as in Data Visualization I. Europe’s 30 countries, each a row:

europe_wide = country_wide.loc["Europe"]

fig, ax = plt.subplots(figsize=(9, 8), layout="constrained")
sns.heatmap(europe_wide, cmap="YlGnBu", cbar_kws={"label": "Life expectancy (years)"}, ax=ax)
ax.set(xlabel="Year", ylabel="")
plt.show()

country_wide.loc["Europe"] selects one outer level of the two-level index, as in the last chapter, leaving one row per European country. Each row darkens from left to right as life expectancy rises. The lightest rows at the start — Turkey, Bosnia and Herzegovina, and Albania — show where Europe’s lowest life expectancies were in 1952.

TipTurning a wide table on its side

A wide table with many columns can be easier to read turned on its side. .T, the transpose from NumPy Fundamentals, swaps rows and columns: country_wide.T has one row per year and one column per country. Unlike pivot() and melt(), it does not change which values sit together; it only turns the table.

13.4.3 Summarizing while reshaping: pivot_table()

A continent-by-year table is a different request. Each continent-year cell would have to hold every country of that continent in that year — 52 for Africa — and pivot() will not choose among them:

try:
    gdp.pivot(index="continent", columns="year", values="lifeExp")
except ValueError as error:
    print("ValueError:", error)
ValueError: Index contains duplicate entries, cannot reshape

To fill such a cell, the rows that land in it must be summarized into one number, and only you know which summary you want. pivot_table() takes the same three arguments as pivot(), plus aggfunc=, the function that combines the rows in each cell. Here it is the mean life expectancy of each continent’s countries:

life_pivot = gdp.pivot_table(index="continent", columns="year",
                             values="lifeExp", aggfunc="mean")
life_pivot.round(1)
year 1952 1957 1962 1967 1972 1977 1982 1987 1992 1997 2002 2007
continent
Africa 39.1 41.3 43.3 45.3 47.5 49.6 51.6 53.3 53.6 53.6 53.3 54.8
Americas 53.3 56.0 58.4 60.4 62.4 64.4 66.2 68.1 69.6 71.2 72.4 73.6
Asia 46.3 49.3 51.6 54.7 57.3 59.6 62.6 64.9 66.5 68.0 69.2 70.7
Europe 64.4 66.7 68.5 69.7 70.8 71.9 72.8 73.6 74.4 75.5 76.7 77.6
Oceania 69.3 70.3 71.1 71.3 71.9 72.9 74.3 75.3 76.9 78.2 79.7 80.7

Five rows and 12 year columns, each cell the mean over a continent’s countries. The fourth argument says how each cell is filled:

Argument Becomes Here
aggfunc= How the rows in each cell are combined The mean
TipAlways name aggfunc=

pivot_table() has a default, the mean, so a call without aggfunc= still runs and returns a table. But the code no longer says what the table holds: a reader, or you a week later, cannot tell whether a mean was intended or whether a total was meant and forgotten. Writing aggfunc="mean", aggfunc="sum", aggfunc="median", or aggfunc="count" puts the calculation in the code, where it can be checked. This book names it in every pivot_table() call.

A summary hides how many rows went into it. Asking for aggfunc="count" shows that:

gdp.pivot_table(index="continent", columns="year", values="lifeExp",
                aggfunc="count").iloc[:, :4]
year 1952 1957 1962 1967
continent
Africa 52 52 52 52
Americas 25 25 25 25
Asia 33 33 33 33
Europe 30 30 30 30
Oceania 2 2 2 2

Each Africa cell combines 52 countries, each Oceania cell two. Here the summarizing is intended: each cell is meant to describe a continent.

aggfunc= takes any statistic name, or a lambda, as in agg() from the last chapter. The 90th percentile of life expectancy among each continent’s countries:

gdp.pivot_table(index="continent", columns="year", values="lifeExp",
                aggfunc=lambda x: x.quantile(0.9))[[1952, 2007]].round(1)
year 1952 2007
continent
Africa 45.0 71.3
Americas 65.4 78.7
Asia 60.0 79.7
Europe 71.9 80.9
Oceania 69.4 81.1

margins=True adds an All row and column. Notice what the All row averages:

life_margins = gdp.pivot_table(index="continent", columns="year", values="lifeExp",
                               aggfunc="mean", margins=True)
print("All row, 2007:", round(life_margins.loc["All", 2007], 1))
print("mean of the five continent means, 2007:", round(life_pivot[2007].mean(), 1))
All row, 2007: 67.0
mean of the five continent means, 2007: 71.5

The All row is the mean over all 142 countries, 67.0 years in 2007, not the mean of the five continent means, 71.5. Africa’s 52 countries count 26 times as much as Oceania’s two. It is the same question as in the last chapter — what does this mean average? — and the margin answers it differently from what a reader of the table might assume.

13.4.4 The same table from a grouped result: unstack()

The last chapter built this table in two steps. Grouping by two columns gives a Series with a two-level index: continent on the outer level and year on the inner. unstack() moves the inner level up into the column headers, so each continent becomes one row and each year one column:

life_by_year = gdp.groupby(["continent", "year"])["lifeExp"].mean()
life_wide = life_by_year.unstack()
print(life_wide.equals(life_pivot))
True

equals() confirms the two tables are identical: pivot_table() does the grouping and the unstacking in one call. Use unstack() when you already have a grouped result. Either way, with years as columns, change over time is one subtraction:

(life_wide[2007] - life_wide[1952]).round(1).sort_values()
continent
Oceania     11.5
Europe      13.2
Africa      15.7
Americas    20.3
Asia        24.4
dtype: float64

Africa gained 15.7 years over the period and Asia 24.4.

13.4.5 Rearrange or summarize? What a duplicate does

The choice between pivot() and pivot_table() matters most when the data has a mistake. Suppose the three-country table had Canada’s 2005 value entered twice, with a typo in the second entry. pd.concat(), from Pandas Fundamentals, adds the extra row; ignore_index=True numbers the rows afresh. pivot() stops at the duplicate:

toy_dup = pd.concat([toy_long,
                     pd.DataFrame({"country": ["Canada"], "year": [2005], "lifeExp": [80.5]})],
                    ignore_index=True)

try:
    toy_dup.pivot(index="country", columns="year", values="lifeExp")
except ValueError as error:
    print("ValueError:", error)
ValueError: Index contains duplicate entries, cannot reshape

pivot_table() does not stop. It does what it was told, and averages the two rows:

toy_dup.pivot_table(index="country", columns="year", values="lifeExp", aggfunc="mean")
year 2000 2005 2010
country
Canada 79.2 80.3 81.0
Mexico 74.1 75.2 76.5
USA 76.8 77.5 78.5

The table looks complete, and Canada’s 2005 cell says 80.3: a value that appears nowhere in the data, the mean of 80.1 and 80.5. Nothing warns you. The counts do:

toy_dup.pivot_table(index="country", columns="year", values="lifeExp", aggfunc="count")
year 2000 2005 2010
country
Canada 1 2 1
Mexico 1 1 1
USA 1 1 1

One cell holds 2. So the rule is: when each cell should hold one value, use pivot(), which stops at a duplicate. When you mean to summarize, use pivot_table(), name the summary in aggfunc=, and check the counts if any cell should have held one row. A duplicate is the kind of row duplicated(subset=["country", "year"]) from Data Cleaning finds before you reshape.

13.5 Wide to long

13.5.1 melt()

Data often arrives wide because that is how people record and publish it: a spreadsheet with one row per student and one column per quiz, or a public data download — from the World Bank or the Census Bureau, say — with one row per country or state and one column per year. With such data, melt() is usually the first step. melt() turns those columns into rows, the inverse of pivoting. A small gradebook shows the idea:

grades = pd.DataFrame({
    "student": ["Ana", "Ben", "Chen", "Dee"],
    "quiz1": [8, 6, 9, 7],
    "quiz2": [9, 7, 9, 6],
    "quiz3": [7, 8, 10, 8],
})
grades
student quiz1 quiz2 quiz3
0 Ana 8 9 7
1 Ben 6 7 8
2 Chen 9 9 10
3 Dee 7 6 8
grades_long = grades.melt(id_vars="student", var_name="quiz", value_name="score")
grades_long
student quiz score
0 Ana quiz1 8
1 Ben quiz1 6
2 Chen quiz1 9
3 Dee quiz1 7
4 Ana quiz2 9
5 Ben quiz2 7
6 Chen quiz2 9
7 Dee quiz2 6
8 Ana quiz3 7
9 Ben quiz3 8
10 Chen quiz3 10
11 Dee quiz3 8

Four students × three quizzes = 12 rows. The three arguments say what to keep and what to call the new columns:

Argument Meaning Here
id_vars= Columns that identify a row and stay as they are student
var_name= Name for the new column that holds the old column headers quiz
value_name= Name for the new column that holds the values score

Every column not listed in id_vars is melted; value_vars= limits the melt to some of them. In long form, the questions a gradebook raises become one familiar line each — the mean score on each quiz is a groupby():

grades_long.groupby("quiz")["score"].mean()
quiz
quiz1    7.50
quiz2    7.75
quiz3    8.25
Name: score, dtype: float64

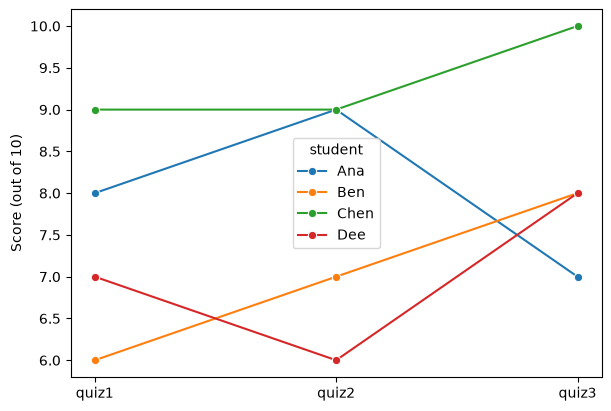

Long format is also what seaborn’s hue= needs, here to draw one line per student:

fig, ax = plt.subplots(figsize=(6, 4), layout="constrained")
sns.lineplot(data=grades_long, x="quiz", y="score", hue="student", marker="o", ax=ax)
ax.set(xlabel="", ylabel="Score (out of 10)")
plt.show()

13.5.2 Melting back, and checking the result

The country-by-year table melts back into the original long layout. reset_index() first turns continent and country into ordinary columns, so they can be id_vars:

life_long = country_wide.reset_index().melt(id_vars=["continent", "country"],
                                           var_name="year", value_name="lifeExp")
print(life_long.shape)
print(life_long.dtypes)
(1704, 4)
continent        str
country          str
year          object
lifeExp      float64
dtype: object

142 countries × 12 years = 1,704 rows, matching the original data. But year came back as object, not as integers: the year labels passed through column headers, where they were stored alongside the text headers continent and country. A reshape can change a column’s type without any warning, so check dtypes afterwards and restore it:

life_long["year"] = life_long["year"].astype(int)

original = gdp.sort_values(["country", "year"]).reset_index(drop=True)
restored = life_long.sort_values(["country", "year"]).reset_index(drop=True)
print("same years:", (original["year"] == restored["year"]).all())
print("same values:", np.allclose(original["lifeExp"], restored["lifeExp"]))
same years: True
same values: True

Sorted the same way, the melted table matches the original row for row: long to wide and back again lost nothing. This round-trip check — reshape, reshape back, compare — is the surest way to confirm a reshape did only what you meant.

13.5.3 stack()

stack() is the counterpart of unstack(): it moves the column headers down into the inner level of the row index, turning the continent-by-year table back into a Series:

life_stacked = life_wide.stack()
print(life_stacked.shape)
life_stacked.head()
(60,)
continent  year
Africa     1952    39.135500
           1957    41.266346
           1962    43.319442
           1967    45.334538
           1972    47.450942
dtype: float64

60 values again, indexed by continent and year: exactly the grouped result the section started from. Use stack() and unstack() when the data already has a two-level index, as grouped results do, and melt(), pivot(), and pivot_table() when it has ordinary columns.

13.6 Summary Cheat Sheet

Goal Code
Long table to wide, one value per cell df.pivot(index="a", columns="b", values="v")
Long table to wide, summarizing each cell df.pivot_table(index="a", columns="b", values="v", aggfunc="mean")
Grouped result to wide df.groupby(["a", "b"])["v"].mean().unstack()
Several row labels pivot(index=["a", "c"], ...), and the same in pivot_table()
See how many rows each cell combined pivot_table(..., aggfunc="count")
Your own statistic aggfunc=lambda x: x.quantile(0.9)
Totals or overall means pivot_table(..., margins=True)
Wide table to long df.melt(id_vars="id", var_name="name", value_name="value")
Melt only some columns melt(..., value_vars=["c1", "c2"])
Wide with a two-level index to long wide.stack()
Index levels back to columns reset_index()
Restore a type changed by reshaping df["year"] = df["year"].astype(int)
Swap rows and columns df.T

The rule to remember: after every reshape, check the number of rows, what each cell combined, and the column types, and name aggfunc= whenever a cell summarizes several rows.

13.7 Practice Activity: Long, Wide, and Back

Goal: Reshape one dataset in both directions, use each layout for what it does best, and check that nothing was lost or quietly averaged.

File: activity13.ipynb from the practice kit.

Submit: activity13.html through the final upload question in the Data Reshaping Canvas quiz.

This section contains the complete activity instructions. The starter loads the data and supplies spaces to record your work. Open activity13.ipynb from the folder prepared in Set Up Your Chapter Files, using the same project environment. The worked examples above are preparation, not additional submission requirements.

The starter loads gdp from the kit’s data/ folder and builds a small wide table, rainfall, with one row per city and one column per month.

A. Long to Wide, Two Ways

  • Replace Your Name in the opening Raw cell’s author field. Run the setup cell; it must report the shapes (1704, 6) and (4, 5).
  • Build a continent-by-year table of median gdpPercap twice: once with groupby() and unstack(), once with pivot_table() and aggfunc="median". Show that the two are identical with equals().
  • Say in one sentence how many countries went into the Africa cells, and how you checked.

B. Compare Two Years

  • Build a country-by-year table of gdpPercap with pivot() and compute each country’s ratio of 2007 to 1957 GDP per capita.
  • Show the five countries with the largest ratio, and report how many countries had lower GDP per capita in 2007 than in 1957.

C. Wide to Long, and Check

  • Melt rainfall into a long table with columns city, month, and rainfall_mm. Confirm the number of rows is the number of cities times the number of months.
  • Use the long table to compute mean rainfall per month with groupby(), and draw one line per city with seaborn.

D. When a Pivot Summarizes

  • Build a continent-by-year table of pop with aggfunc="sum", and another with the default aggfunc.
  • Say which table answers “how many people lived in each continent?”, and what the other one actually shows.

Render and Submit

Restart the kernel, run all cells in order, resolve unexpected errors, and save. Include your outputs and explanations for A–D, and a short Markdown completion note. From stat303-data-reshaping in the terminal, run:

quarto render activity13.ipynb --to html

Follow the Quarto refresher: inspect the HTML and a copy opened outside the project folder, and confirm that every output appears and your name is on the report. Upload only activity13.html to the Data Reshaping Canvas quiz; keep your notebook locally.

HTML grading (16 points): both wide tables, the equals() check, and the count explanation (4); the country-by-year table, the five largest ratios, and the count of declines (4); the melted table with its row check, the monthly means, and the plot (4); both population tables and the explanation (3); name, readable report, and completion note (1).

13.8 Extended Practice

These longer exercises are additional practice, not requirements for the Canvas quiz. Work in a separate notebook beside your activity and load the data the way the chapter does. Include your code, outputs, and explanations.

13.8.1 Several Values at Once

Pass two columns to values=, as in pivot_table(index="continent", columns="year", values=["lifeExp", "gdpPercap"], aggfunc="mean"). The result has two-level column headers. Select the gdpPercap block, then try stack() on the result. Which layout would you hand to a reader, and which to seaborn?

13.8.2 A Heatmap of Change

Build the country-by-year table of lifeExp for Africa, subtract the 1952 column from every column, and draw the result as a heatmap with a diverging colour map centred at 0. Which countries stand out, and in which decades?

13.8.3 Melt Only Part of a Table

Starting from the country-by-year table, melt only the columns 1952, 1977, and 2007 with value_vars=. How many rows does the result have, and what happened to the other years?

13.8.4 Round Trip on GDP

Repeat the chapter’s round-trip check for gdpPercap: pivot to wide, melt back, restore the type, and confirm with np.allclose() that every value matches the original.

13.9 Before You Move On

The habit to carry forward is checking a reshape. Every tool in this chapter can return a perfectly shaped table that is wrong: pivot_table() averages a duplicate without saying so, margins=True averages over rows rather than groups, and melt() can bring numbers back as text. Count the rows, look at what each cell combined, and check the types — or reshape back and compare.

Choose pivot() when each cell should hold one value, so a duplicate stops it, and pivot_table() with a named aggfunc= when you mean to summarize.

The other habit is choosing the layout by the task. Long data suits groupby(), seaborn, and models; wide data suits comparisons between columns and tables for a reader.

For any reshape you make, you should be able to answer five questions:

  1. Is the starting table long or wide, and what is one row?
  2. What will one row and one column be after the reshape?
  3. Did any cell combine more than one value, and if so, how?
  4. Does the row count after the reshape match what you expected?
  5. Did any column change type?

Continue to Combining Datasets, where tables in matching layouts are joined together.

References: pandas: reshaping and pivot tables, DataFrame.pivot, DataFrame.pivot_table, DataFrame.melt, DataFrame.stack, DataFrame.unstack, and DataFrame.T.
